XY-FJE220D Wall mounted access network fiber splice closures with 4pcs Cable Ports

Packaging Details : 20PCS/Carton

MOQ : 1

Material : PC

Dimension : 330*140*70mm

Operating Temp. : -40 to +65℃.

N.W. : 0.85kg

Contact Now

XY-FJE220D Wall mounted access network fiber splice closures with 4pcs Cable Ports

Quick Detail:

  1. Name: In-line Type Fiber Optic Splice Closure
  2. Application: Aerial, Underground, Wall mounted in duct and handhole
  3. Cable Diameter: 10~22mm
  4. Capacity of fibers: 192 cores(single fiber)
  5. Cable entry ports:2 in, 2 out
  6. No. of splice trays: 4pcs

Description:

Fiber optic splice closure is made of the high-quality ABS and with the mechanical sealing structure filled with the sealing material.

Features:

  1. 4 fiber cable in-out round ports
  2. Can be used in aerial and direct buried application
  3. The cover and base are filled with rubber with hoop.
  4. Entry ports are sealed with screw thread parts
  5. Can be opened after sealing and can be reused without changing sealing material
  6. Available for aerial and direct buried.

Application:

  1. Aerial –hanger
  2. Wall-mounting
  3. Directly buried
  4. Widely used in FTTH access network

Specification:

Model XY-FJE220D
Size(mm)
L*W*H		 330*140*70
Cable diameter(mm) 10~22
Cable ports 2in, 2out
Capacity of splice tray 24(single fiber)
Max QTY of splice tray 4
Max Capacity (Core) 192(Single)
Sealing Structure Sticky cincture
N.W. 0.85kg


Quality XY-FJE220D Wall mounted access network fiber splice closures with 4pcs Cable Ports wholesale

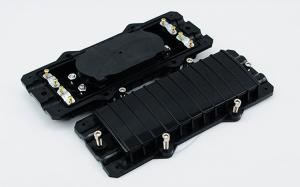

XY-FJE220D Wall mounted access network fiber splice closures with 4pcs Cable Ports Images
